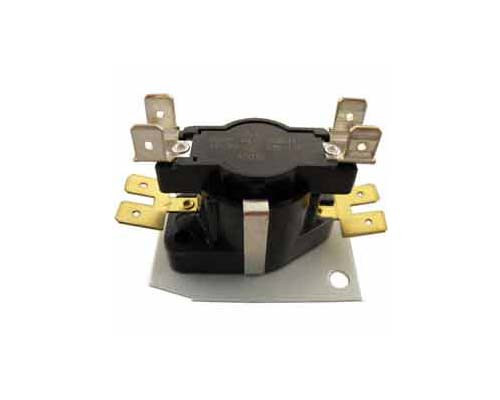

Electric Heat Sequencer Relay On 30-75 Off 1-40

Function:

This is a Heat Sequensor for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.

Replaces Old Part #s:

60000AOM-97

Specifications:

Type (1)SPST

Number of Switches 1

Main Switch on Time(Sec)  30-75

Main Switch Off Time (Sec) 1-40

Number of Timings 1

FLA @ 240V 25

Control Volts 24
