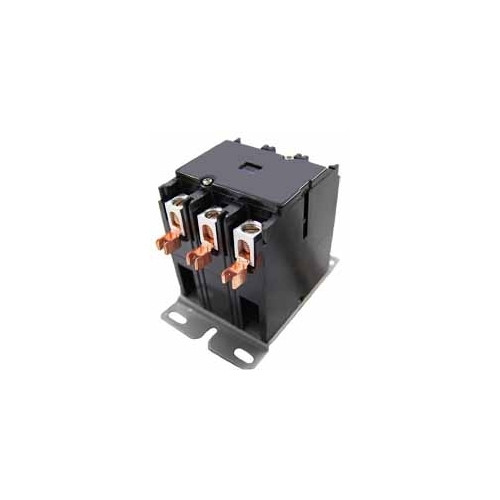

3 POLE Contactor, 24 Volt Coil, 40 Amp With Dust Cover. These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
- Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Traditional design meets many needs.
- Full array of replacement coils, contact sets and accessories available.
| Description | 24 Vac 3 pole Contactor |
| Application | PowerPro Definite Purpose Contactor |
| Coil Ratings Voltage | 24 Vac |
| Electrical Connections (main) | lug connectors |
| Contact Connections (coil) | 1/4 in. quick-connects and #6 screws |
| Dimensions (in.) | 3.1 high x 3.64 wide x 2.4 deep |
| Dimensions (mm) | 79 high x 92 wide x 61 deep |
| Temperature Range (F) | -4 F to +149 F |
| Temperature Range (C) | -20 C to +65 C |
| Contact Electrical Ratings (AFL @ 277, 480, 600 Vac) | 40 A @ 240/277 Vac, 480 Vac, 600 Vac |
| Contact Electrical Ratings (Resistive @ 277, 480, 600 Vac) | 50 A @ 240/277 Vac, 480 Vac, 600 Vac |
| Approvals, Underwriters Laboratories Inc | UL Component Recognized: File No. 14900, Guide No. NLDX2 |
| Approvals, Canadian Standards Association | Certified: File No. LR6535 |
| Tradeline Value | Tradeline |
REPLACES- 13013, HONEYWELL MARS: 91431, TRANE: CTR01164, SIEMENS-FURNAS: 42CF35AJ, FASCO: 3M40-A, GENERAL ELECTRIC: CR353AD3BH1, SQUARE D: 8910L0-3, STEVECO: 90170, PRODUCTS UNLIMITED (OEM): 3100-30Q10XXXAH
