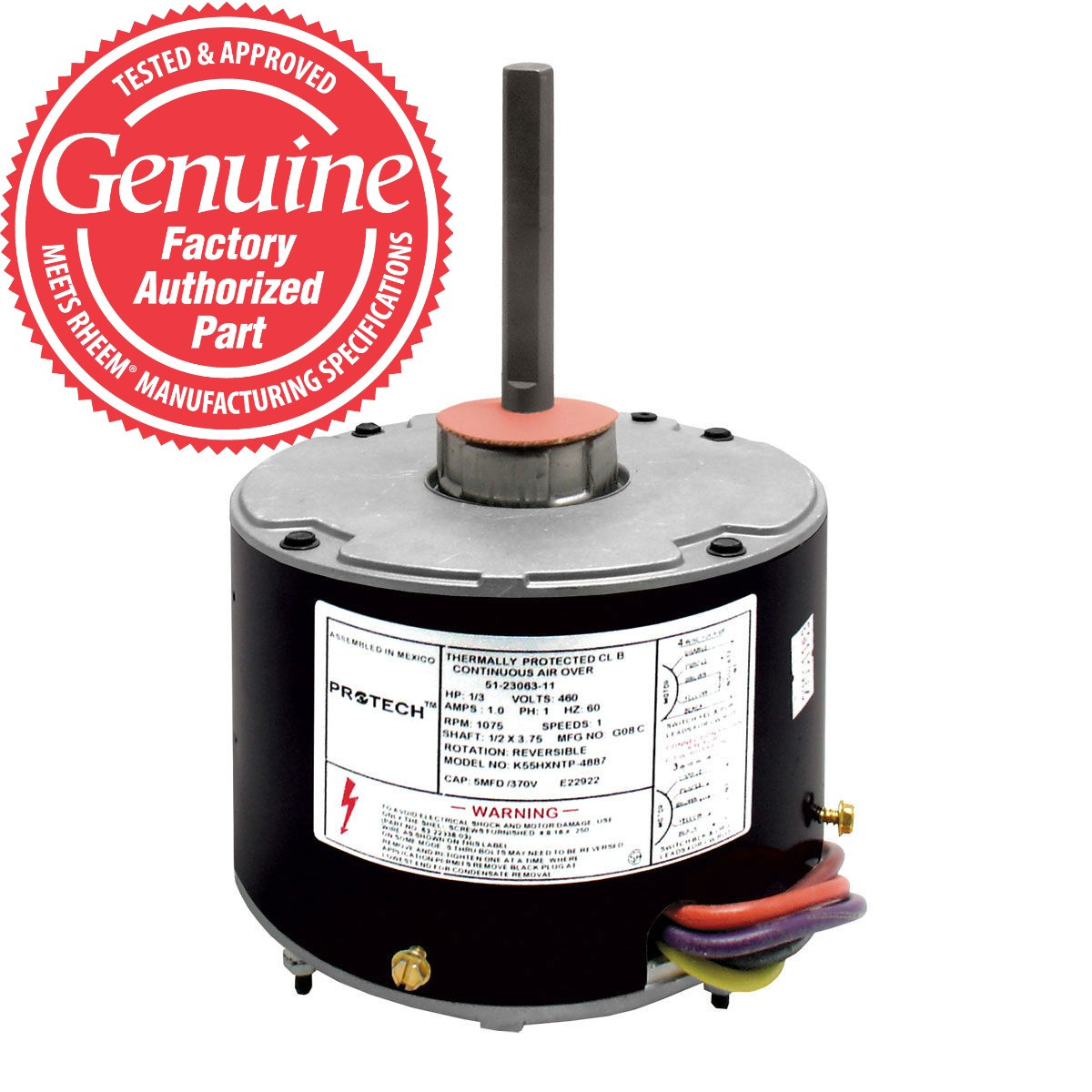

Condenser Motor 1/3 HP 1075 RPM 1 SPD 460/1/60

Rheem/Protech 51-23063-11 - Condenser Motor 1/3 HP 460/1/60 (1075 RPM/1-Speed)

Product Technical Data:

HP: 1/3
No. of Speeds: 1
High Speed (RPM): 1075
Input Voltage (V): 460
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 5/370
FLA at 460V (A): 1.00
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 3-1/4
Overall Shaft Length (in.): 4-1/4
Motor Body Length (in.): 4-1/8
Overall Motor Length (in.): 8-3/8
Mounting: Shell-band
Mounting: Thru-bolt
Mounting: Shell-screw
Frame Size: 48
Bearing Type: Sleeve
Application: Condenser
Drive Type: Direct Drive

Part Used in the Following Models:

RAKA036NAS, RAKA042NAS, RAKA048NAS, RAKA060NAS/NAZ, RAKA065NAS, RAWE078N, RKKA-A036D/N, RKKA-A048D/N, RKKA-A060D/N, RRGG D, RRGF 06/07/09/10/11/1213/15 heat 36DL, 48DL, cool, UAKA036NAS, UAKA042NAS, UAKA048NAS, UAKA060NAS/NAZ, UAKA065NAS, UAWE078N, UKKA-A036D/N, UKKA-A048D/N, UKKA-A060D/N, URGF 06/07/09/10/11/12/13/15 heat 36DL, 48DL cool

Model:Part:Page:

RAKA51-21845-01Fan Group

SAKA51-21845-01Fan Group

RPKA51-21845-01Fan Group (1)

RAKA51-21853-04Fan Group

SAKA51-21853-04Fan Group

RPDC51-21853-04Fan Group

RPKA51-21853-04Fan Group (2)

RAWE51-21853-04Fan Group

SAWE51-21853-04Fan Group

RKKA51-23063-11Fan Group

RKMA51-23063-11Fan Group

RLKA51-23063-11Fan Group

RLMA51-23063-11Fan Group

Replaces:

51-21854-04

51-21713-01

51-21383-01

51-41314-01

8101-5592

51-20696-01

51-41514-02

51-21716-01

51-21844-01

51-40874-01

51-21846-01

51-41515-02

51-21853-04

51-21847-01

51-21841-01

51-41516-02

51-21644-02

51-21853-84

51-41517-02

51-21842-01

51-21840-01

51-20695-01

51-41644-02

51-21843-01

51-21217-01

51-21856-04

8101-5632

8101-5621

8101-5665

51-41643-02

51-41645-02

51-21855-04

51-21845-01

8101-5577

8101-5645
