Condenser Motor 1/3 HP 1075 RPM 1 SPD 208-230/1/60

Hover over image to zoom

  • Image 1
SKU:
5110099819 RHE

 Product Description

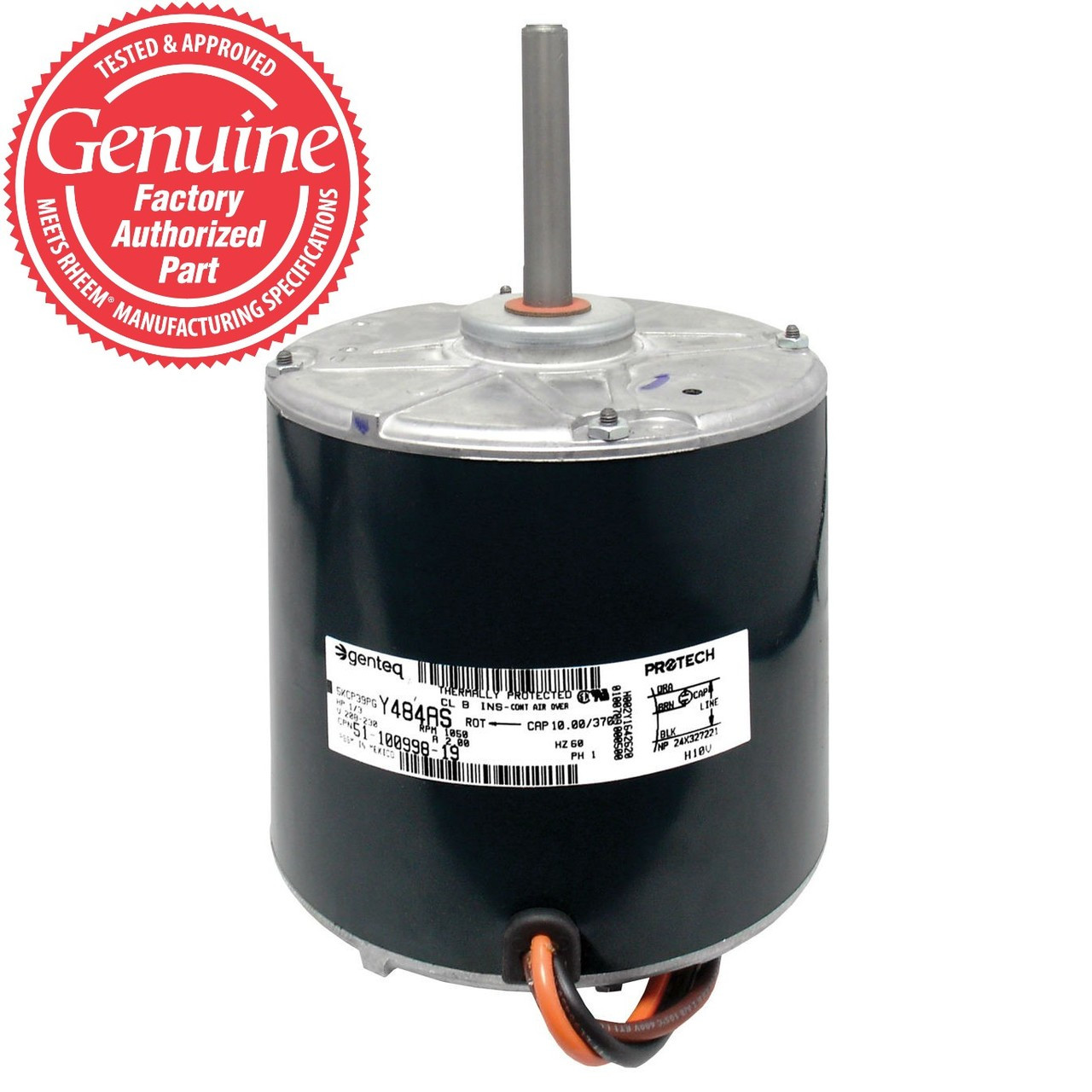

1/3 HP 208-230/1/60 (1075 RPM/1-Speed) Rheem/Protech Direct Drive CCW Condenser Motor 51-100998-19

This motor is an OEM replacement for Rheem, Ruud, and WeatherKing models; additionally it may be suitable for aftermarket retrofit in many other applications. The end boss mounting holes are NOT tapped on these motors. Quantity (4) self-tapping machine screws (10-32 x 7/16 in.) should be used for mounting. Normally, the original screws can be reused for replacement. If additional screws are required, 63-100404-01 is the part number used in production. Equivalent fasteners are also available in many hardware stores.


Product Technical Data

HP: 1/3
No. of Speeds: 1
High Speed (RPM): 1075
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370
FLA at 230V (A): 2.00
LRA at 230V (A): 3.90
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 2-3/4
Overall Shaft Length (in.): 3-11/16
Motor Body Length (in.): 5-1/2
Overall Motor Length (in.): 9-1/8
Mounting: Shell-band
Mounting: End-boss
Frame Size: 48
Bearing Type: Sleeve
Application: Condenser
Drive Type: Direct Drive

Used in the Following Models:

B048 J/C, RRNA-B060 J/C

Model:Part:Page:

PGE13B51-100998-19Fan Group, Blower Group

PGE14B51-100998-19Fan Group

RGEA1651-100998-19Fan Group, Blower Group

RQNA-B51-100998-19Electrical Group, Fan Group

RQNL-B51-100998-19Electrical Group, Fan Group

RQPL-B51-100998-19Electrical Group, Fan Group (1)

RQPW-B51-100998-19Fan Group, Blower Group

RRNA-B51-100998-19Fan Group

RRNA-C51-100998-19Electrical Group, Fan Group, Blower Group

RRNL-B51-100998-19Fan Group

RRPL-B51-100998-19Fan Group

RRRL-B51-100998-19Fan Group, Blower Group

RRRL-C51-100998-19Fan Group, Blower Group

RSNA-B51-100998-19Electrical Group, Fan Group

RSNA-C51-100998-19Electrical Group, Fan Group, Blower Group

RSNL-B51-100998-19Electrical Group, Fan Group

RSPL-B51-100998-19Electrical Group, Fan Group
