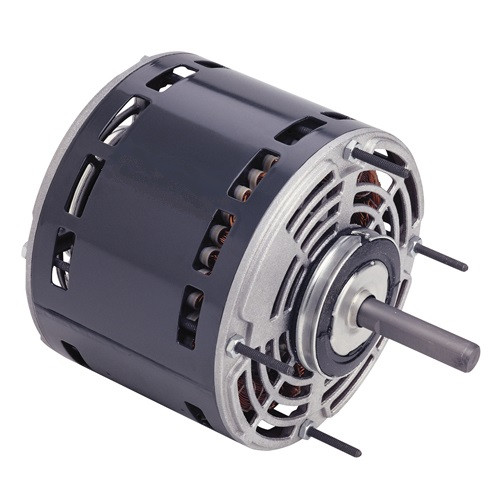

US Motors CA3415 Carrier Fan Coil Motor 3/4hp 115v 1075rpm 4spd CCWLE
Model_Number: | CA3415 |
PRODUCT NAME: | .75 HP - OPAO - 1075 |
PHASETYPE: | 1_PERM SPLIT CAP |
MOTOR ENCLOSURE: | OPAO |
HORSEPOWER: | .75 |
KILOWATTS: | 0.6 |
POLES: | 6 |
NUMBER SPEEDS: | 4 |
RPM: | 1075 |
HERTZ: | 60 |
VOLTS PRIMARY: | 115 |
VOLTS : | 115 |
FRME : | 48 |
SHAFT CODE: | Y |
STATOR DIAMETER: | 5.5 |
STACK: | 2.75 |
MOUNTING: | RING/ STUD |
MOTOR TYPE: | FHP |
OPPOSITE END BEARING: | 6203 |
SHAFT END BEARING: | 6203 |
AMBIENT: | 40 |
ROTATION: | CCW LEAD END REV |
SERVICE FACTOR: | 1 |
RUNCAPMFD: | 20 |
RUNCAPVOLTS: | 370 |
SHIPPING WEIGHT: | 17 |
THERMAL PROTECTION: | AUTOMATIC RESET |
BREAKDOWN TORQUE: | 80.24 |
BREAKDOWN TORQUE UOM: | OZFT |
LOCKED ROTOR TORQUE: | 16.37 |
LOCKED ROTOR TORQUE UOM: | OZFT |
INSULATION CLASS: | B |
LOCKED ROTOR AMPS: | 18.84 |
FULL LOAD AMPS PRIMARY: | 8.1 |
SERVICE FACTOR AMPS PRIMARY: | 8.1 |
