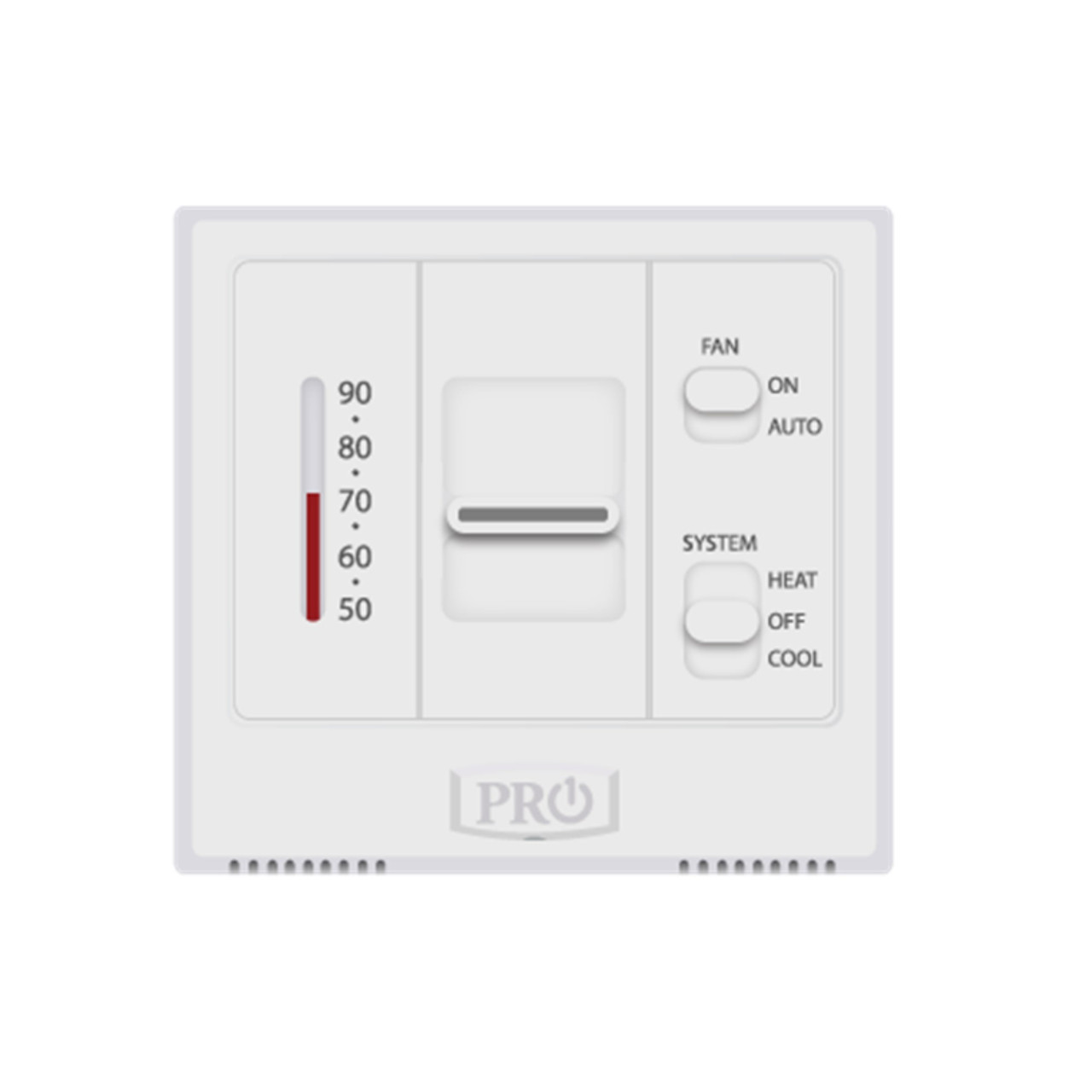

24V Non Programmable 1H/1C Thermostat

Image 1

Hover over image to zoom

  • Image 1
SKU:
T501M PRO
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

T501M

✔   Single Stage
✔   24 VAC Mechanical
✔   Non-Programmable

  • Simple private label badge system

  • Three thermostat in one
    • Heat - Off - Cool
    • Heat only with fan
    • Heat only without fan

  • Removable fan switch

  • Universal sub-base

  • Mounts on wall or junction box

  • Mechanical 24V power

  • 2 year warranty

Specifications


T501M Thermostat

Temperature Range 50°F to 90°F (10°C to 32°C)

Load rating

 1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy ± 1 °F
Swing (cycle rate or differential) Heating is adjustable from 0.2°F to 2.0°F
Cooling is adjustable from 0.2°F to 2.0°F
Power source 18 to 30 VAC
Operating ambient

32° to +105° (O° to + 41°C)

Operating humidity

90% non-condensing maximum

Dimensions of thermostat

4.7"W x 4.4"H x 1.1"D
