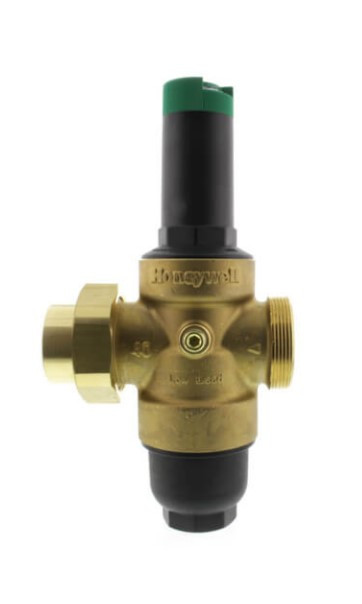

1-1/2" Single Union NPT DialSet Pressure Regulating Valve (Lead Free)

Image 1

Hover over image to zoom

  • Image 1
SKU:
DS06104SUTLF HON
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

Honeywell 1-1/2" Single Union NPT DialSet Pressure Regulating Valve (Lead Free)

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Features

  • Built-In Dial-Set™- no guage is needed to install or set static pressure.
  • Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
  • Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
  • Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, singleunion or double-union configurations.
  • 1/4" NPT tap accessible from both sides to validate output
  • Built in strainer to simplify maintenance
  • Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant

Product Specifications

Dimensions (in.)
11-13/16 in. high x 5-1/8 in. long (Union body no tailpieces)
Dimensions (mm)
300 mm high x 130 mm long (Union body no tailpieces)
Item Type
Product
Approvals, Canadian Standards Association
Certified (B356-10)
Operating Temperature Range (F)
140 F Maximum
Operating Temperature Range (C)
60 C Maximum
Connection Type
Femaile NPT Threaded Inlet & Outlet Externally threaded for Unions
Pipe Size (inch)
1 1/2 IN.
Pipe Size (DN)
DN40
Valve Type
Pressure Regulating Valve
Controlled Fluid
Potable water
Materials (Body)
Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics.
Outlet Pressure Adjustment Range (psi)
25-90 psi
Max. Inlet Pressure Rating (psi)
250 psi
Gauge Tap
1/4 in. NPT (two, one on each side of body).
Calibrated Adjustment Dial
YES
Reducing Ratio
10:1 Maximum
Union Fittings
Single-Union Threaded
Approvals, ASSE
Certified 1003-2009
Approvals, IAPMO
Listed
