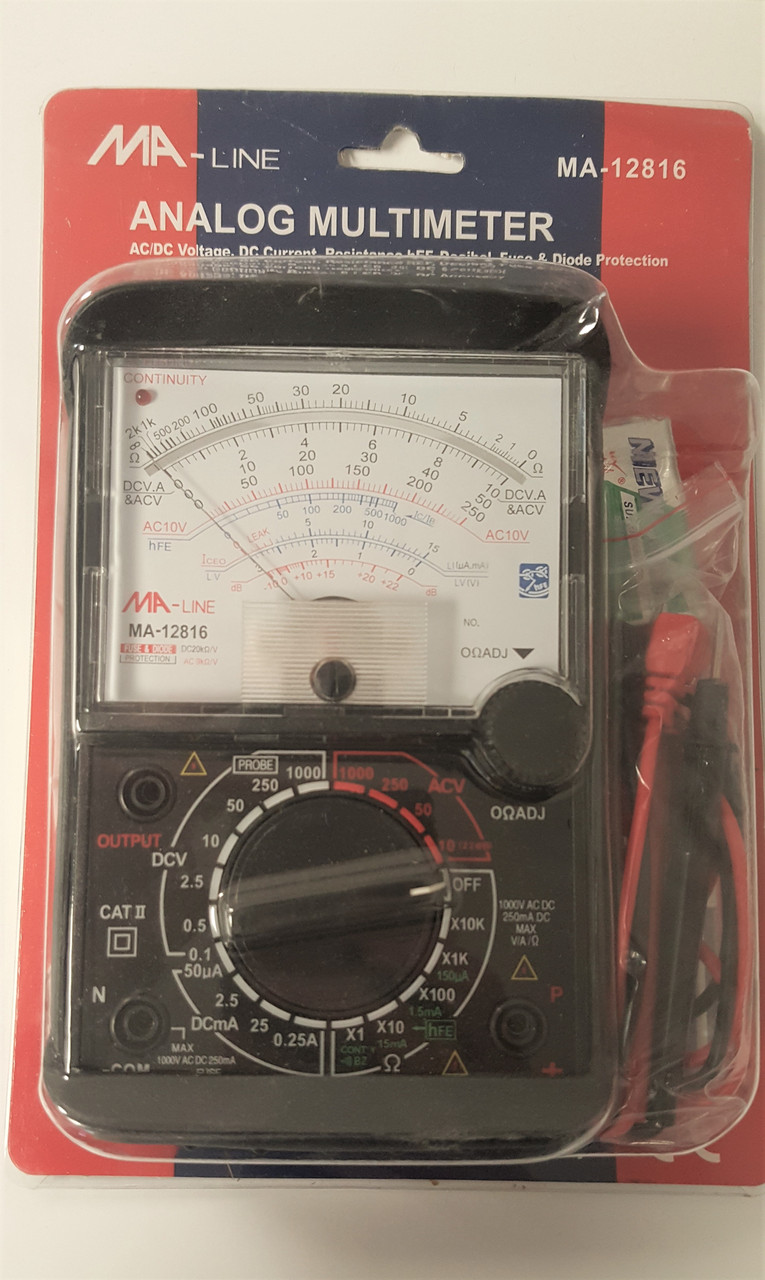

Large Display Analog Multi-Meter MA-12816

MA-Line Analog Multimeter Test Instrument MA-12816

Features:

• Single knob function switch
• Ohmmeter: Rx1k (center 5k)
• Audiable Continuity
• CAT II
• AC/DC Voltage
• DC Current
• Resistance hEF
• Decibel
• Fuse & Diode Protection 20 Ranges
• Continuity Buzzer & LED
• 3% DC Accuracy
• Specifications:
• DC Voltage
• Ranges: 0.1-0.5-2.5-10-50-250-1000V
• Accuracy at FSD: 3; (1000V;5)
• Sensitivity: 20k /V
• Extension: 25k V (with HV probe extra)
• AC Voltage
• Ranges: 10-50-250-1000V
• Accuracy at FSD: 4; (1000V;5)
• Sensitivity: 9k /V
• Decibelmeter: -10 to +22dB 0dB=1mw/600
• DC Current
• Ranges: DCmA (at 0.1 VDC position), 2.5mA, 25mA, 0.25A
• Accuracy at FSD: 3(10A;5)
• Volte Drop: 250mV
• Resistance Ranges:
• X 1-0.2 up to 2k, Midscale, at 20
• X 10-2 up to 20k, Midscale, at 200
• ** X 100-20 up to 200k, Midscale at 2k
• X 1k-200 up to 2M, midscale, at 20k
• X 10k-2k up to 20M, Midscale, at 200k
• Accuracy at FSD: 3
• Iceo: 150 A-1.5mA-15mA
• hFE: 0-1000 (with connector extra)
• Size: 148 X 100 X 35
• Weight: 280g
• 9V battery & 2AA batteries included
• 9V battery required for 10k

Specifications:

Function        Range

DC Volt        0.1V, 0.5V, 2.5V, 10V, 50V, 250V, 1000V

AC Volt        10V, 50V, 250V, 1000V

DC Current     50us, 2.5m A, 25m A, 0.25 A, 10 A

Resistance        x1, x10, x100, x1K, x10K

Decibel AC       10V, 50V, 250V, 1000V

ICEO                x1, x10

hFE                    x10

Diode                x1K, x10, x1

Includes:

• Anaolg Multi-Meter
• 9 Volt Battery (installed)
• Test Leads & instructions
• Carrying Case
