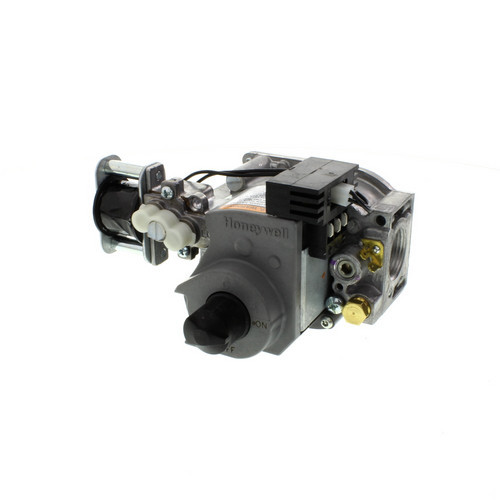

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.
Product Features:
Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
Replaces virtually any IP, HSI, or DSI gas control
For use with natural or manufactured gas or LP gas
Includes converter kit to adapt from natural to LP gas
Compact size
All adjustments and wiring connections accessible from top of control
Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
Internal inlet screen blocks contaminants in gas line from entering valve
Product Specifications:
Description: 24 Vac Dual Direct Ignition/Intermittent pilot Gas Valve with 3/4 in. x 3/4 in. inlet/outlet, Slow opening and 3.5 in. wc pressure regulator setting
Type: Two Stage
Ignition Type: Direct Ignition
Ignition Type: Intermittent Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
Body Pattern: Straight-through
Opening Characteristics: Standard
Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Ratings (psi): 1/2 psi
Pressure Ratings (kPa): 3.5 kPa
Pressure Regulator Setting (psi): 1.7 in. wc low; 3.5 in. wc high
Pressure Regulator Setting (kPa): 0.48 kPa low; 0.87 kPa high
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: 1/4 in. quick-connect male terminals
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Temperature Range (F): -40 F to +175 F
Temperature Range (C): -40 C to +79 C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
Includes: Two 3/4 x 1/2 in. reducer bushings, natural to LP Conversion Kit
Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025007
Approvals, Underwriters Laboratories Inc: UL Component Recognized
