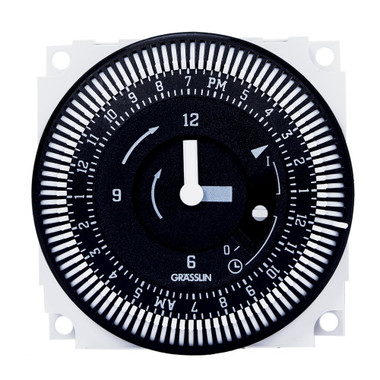

Grasslin FM1STUZH-120U Pool Time Clock 24hr 120V Timer with Override FM1 Series

FM1STUZ-120U PANEL MOUNT TIMER MODULE

The FM1 Series Timer Modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

The FM1STUZH-120U Series Electromechanical Timer Module is designed to be placed inside a machine control panel, circuit board, or other equipment. It offers up to 21 Amp switching designed for control of heating, ventilation, air conditioning, refrigeration, lighting, security, circulating pumps, spas, OEM applications, or any electrical load requiring 24-Hour scheduling.

Features:

• 21 A SPDT Switch
• Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
• 7-Day carry-over battery backup on Q models
• Noise immune – ideal for robust applications
• Synchronous drive or quartz drive Q models with self-recharging battery backup
• True clock face, easy-to-set
• Available with or without override
• Compact size
• Clear plastic cover (DC-FME-A), sold separately below
• Standalone or with indoor/outdoor enclosure, sold separately below

Applications

• Commercial Refrigeration
• Pool & Spa
• Ventilation
• Hot Water Pump Circulation
• Hydroponic Systems
• Lighting Panel Control
• Landscape Lighting
• Bug and Pest Control Systems
• Aerobic Waste Water Systems

Specifications:

• Maximum ON/OFF Operations: 0
• Input Voltages Display: 120 VAC, 60 Hz
• Mounting Options: Panel
• Has Override Switch: No
• Resistive: 21 A, 120-250 VAC, 60 Hz
• Tungsten: 1350 W, 120 VAC, 60 Hz
• Motor: 1 HP, 120 VAC, 60 Hz
•            2 HP, 240 VAC, 60 Hz
• Operating Temperature Max (°C): 85
• Operating Temperature Max (F): 185
• Operating Temperature Min (°C): -40
• Operating Temperature Min (F): -40
• Product Height (mm): 60
• Product Width (mm): 60
• Product Depth (mm): 32
• Manufacturer Warranty: 1-year

Includes:

• FM1STUZH-120U Timer Module
• Manual
